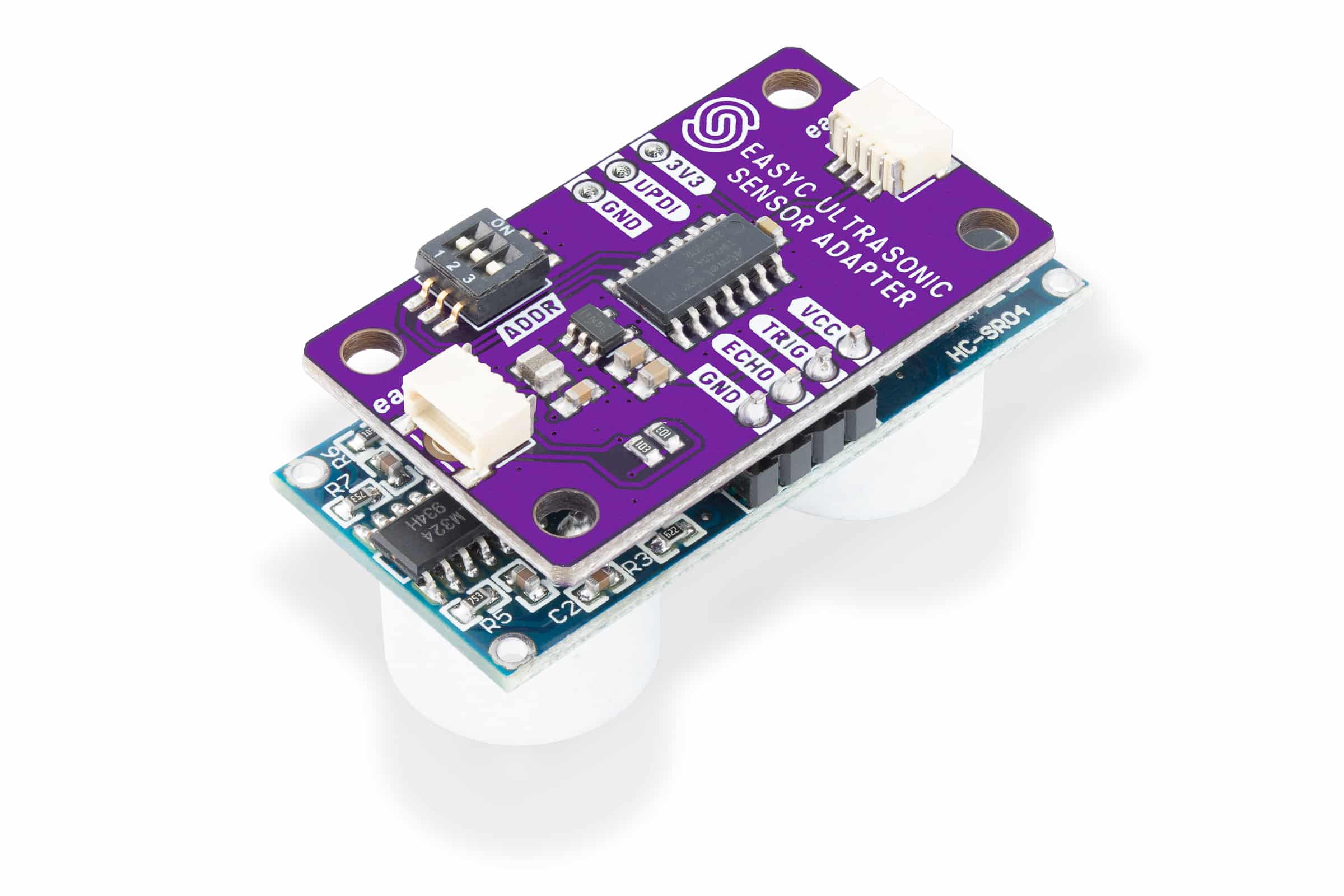

Ultrasonic Sensor With Qwiic
The Ultrasonic Sensor with Qwiic measures distances from 2cm to 400cm with high accuracy, making integration easy with its digital output.

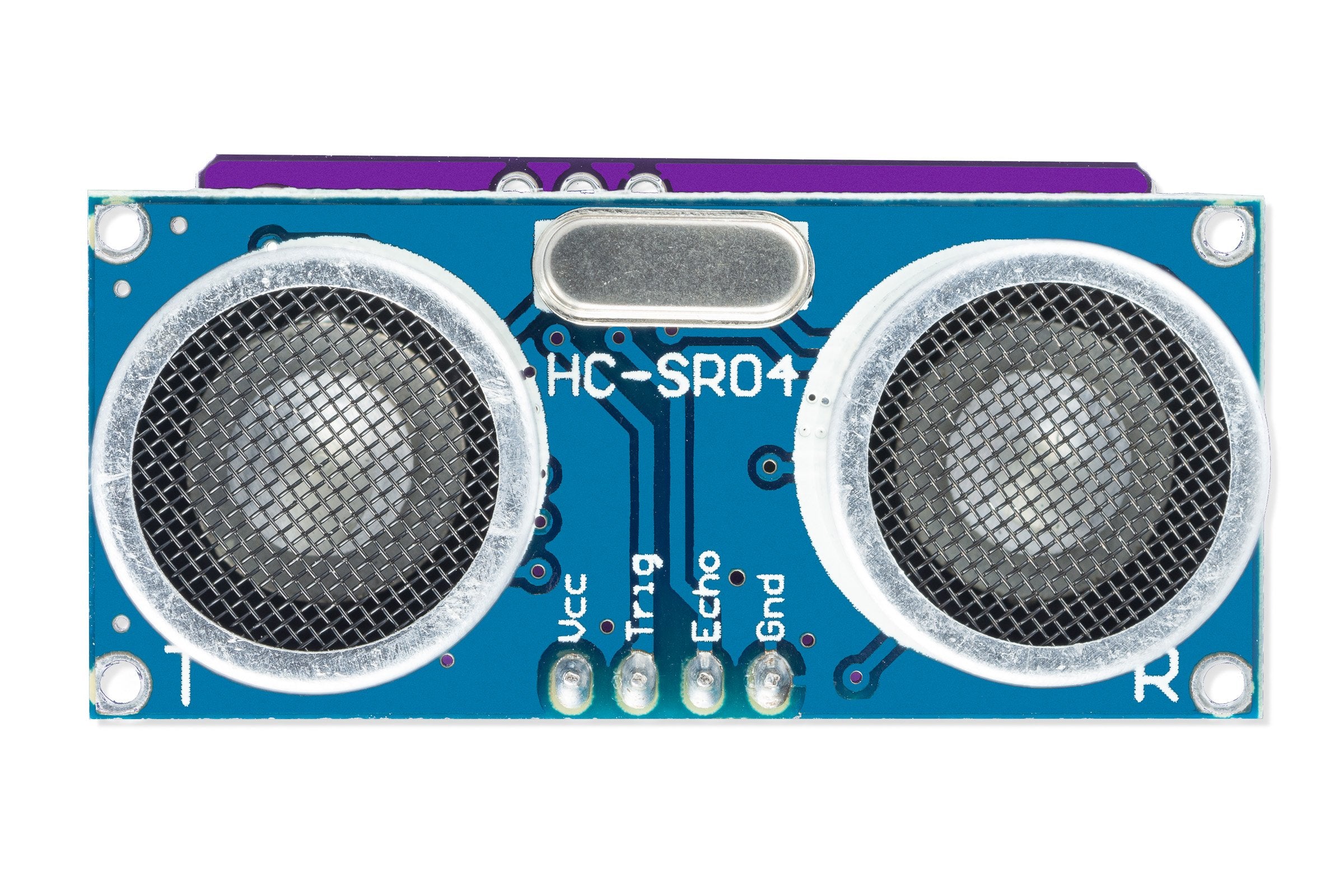

The HC-SR04 ultrasonic sensor is an affordable and super-popular sensor that measures the distance between itself and an object located in front of the sensor. Very simple to use, it returns the distance in centimeters or inches. In this variation, it comes on a board with an Attiny microcontroller that sends readings from the sensor as a digital signal via the Qwiic connector to the microcontroller, which makes its connections a piece of cake.
- Range: 2cm - 400cm
- Accuracy: 1cm
- Measurement angle: 15 degrees
- Voltage: 5V

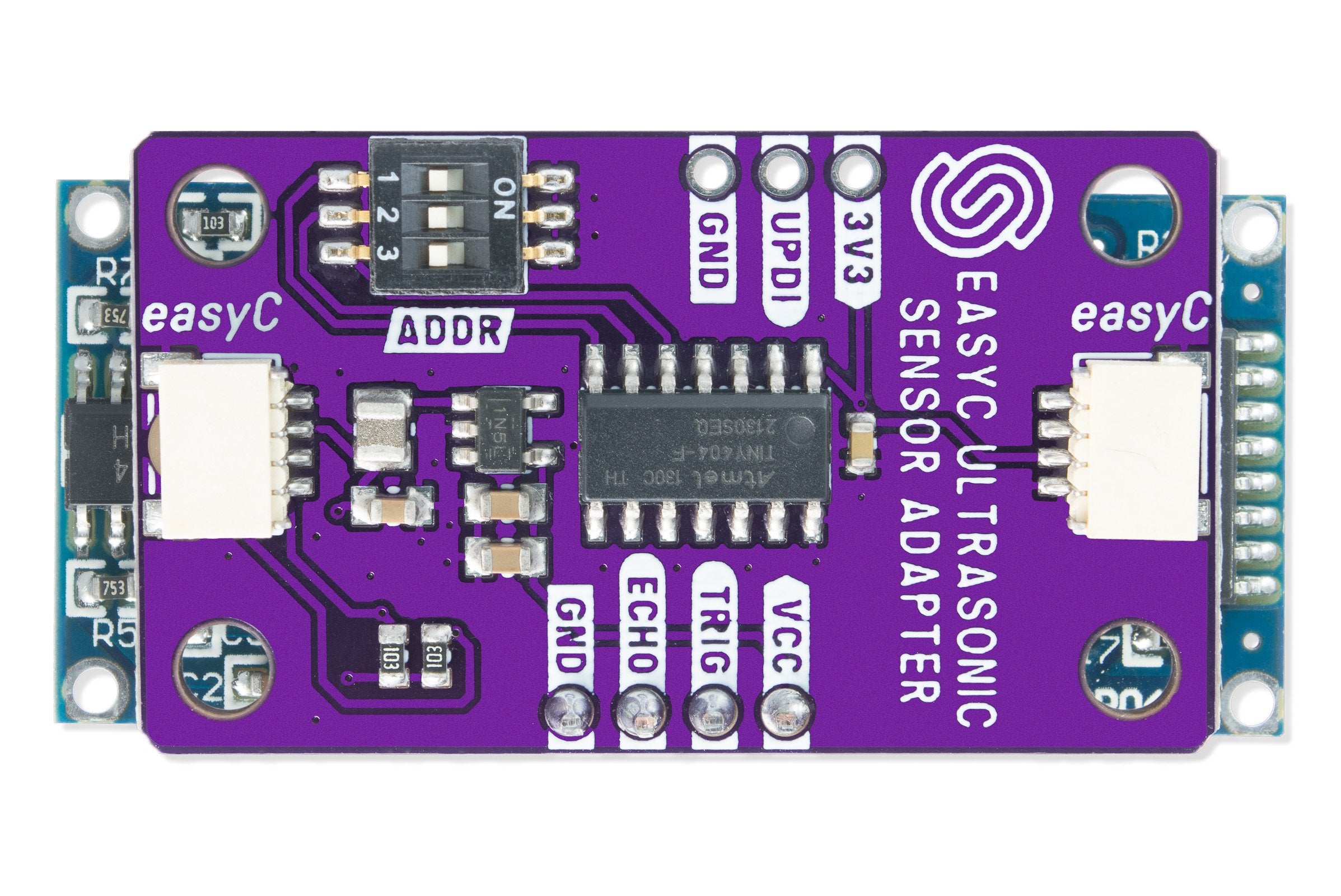

- ATTINY404 microcontroller onboard
- qwiic connectors
- Dimensions: 38 x 22 mm / 1.5 x 0.9 inch
Interface
| Interface | I2C |
|---|---|
| Qwiic Compatible | yes |
| I2C Address Default | 0x30 |
| I2C Address Changeable | yes |
| Breadboard Compatible | yes |
Measurement
| Measurement Types | Distance |
|---|---|
| Measurement Range | 2cm - 400cm |
| Measurement Accuracy | 1cm |
Power
| Supply Voltage Min V | 5 |
|---|---|
| Supply Voltage Max V | 5 |
| Logic Level | 3v3_or_5v |
Other
| Ic Part Number | HC-SR04 |
|---|---|
| Mcu Part Number | ATTINY404 |
Plug into any Soldered Dasduino or microcontroller with an easyC cable — no soldering required.
Add the Soldered library for your language (below).
Open the get-started example and read your first value.
