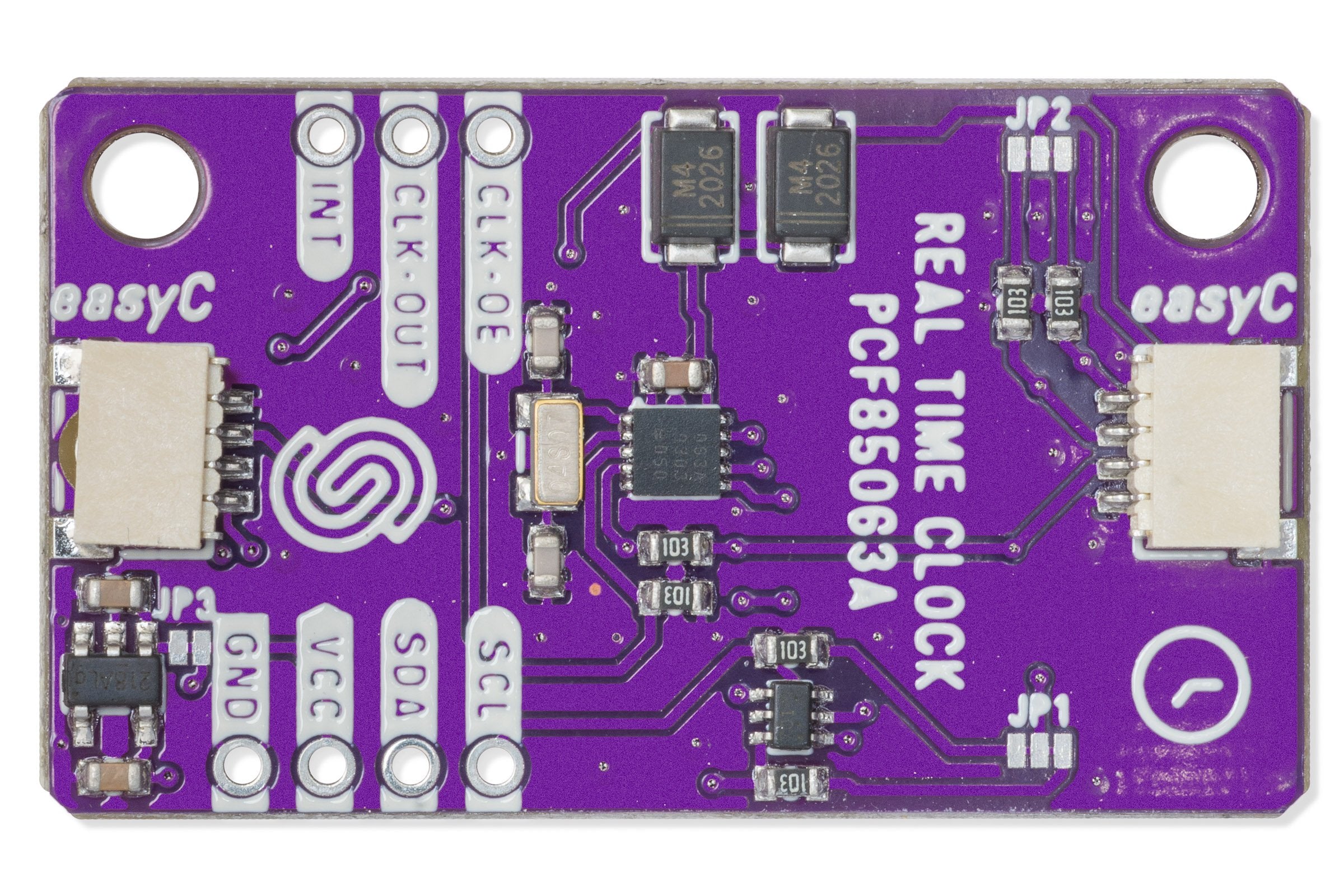

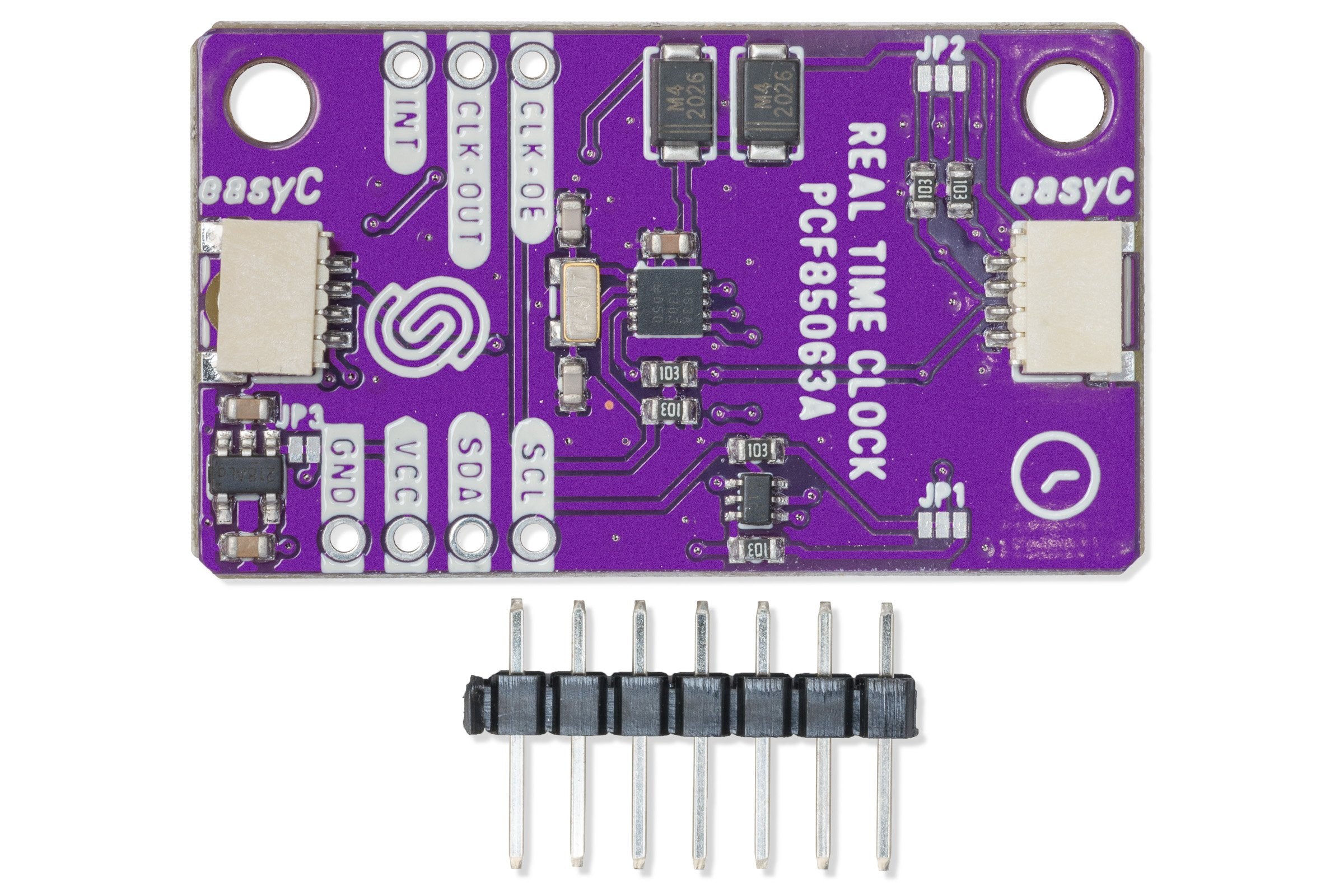

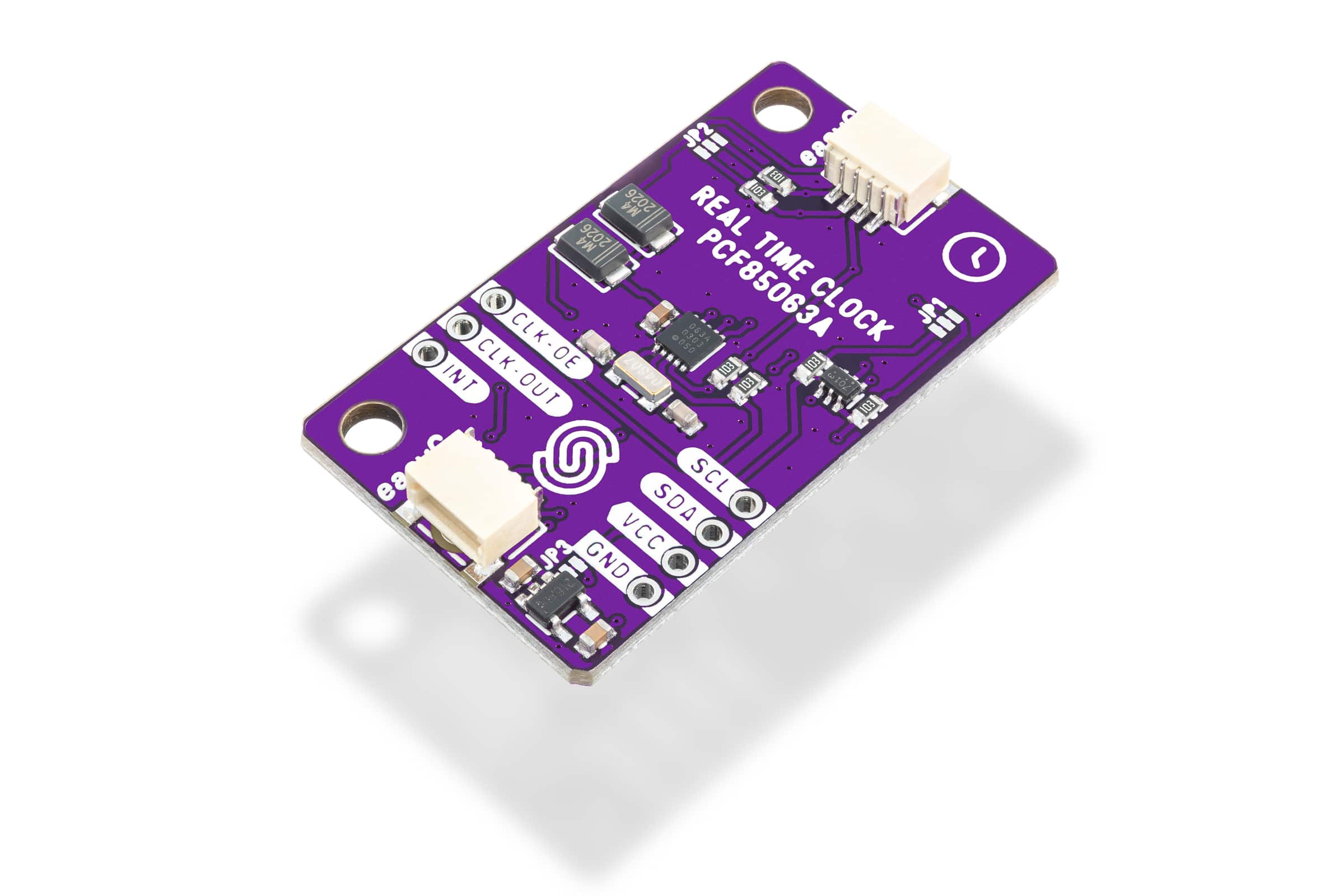

Real Time Clock RTC PCF85063A Breakout
The PCF85063A Real Time Clock accurately tracks time with low power consumption, featuring an alarm and battery backup for reliability.
RTC (Real Time Clock) is a device that carefully and precisely tracks time and dates. It is extremely precise, so it is more suitable for long-term time tracking than clocks on microcontrollers. This breakout can work with an extremely low current and thanks to the alarm feature and interrupt pin, it will allow a microcontroller to enter sleep mode until its awaken by this RTC.

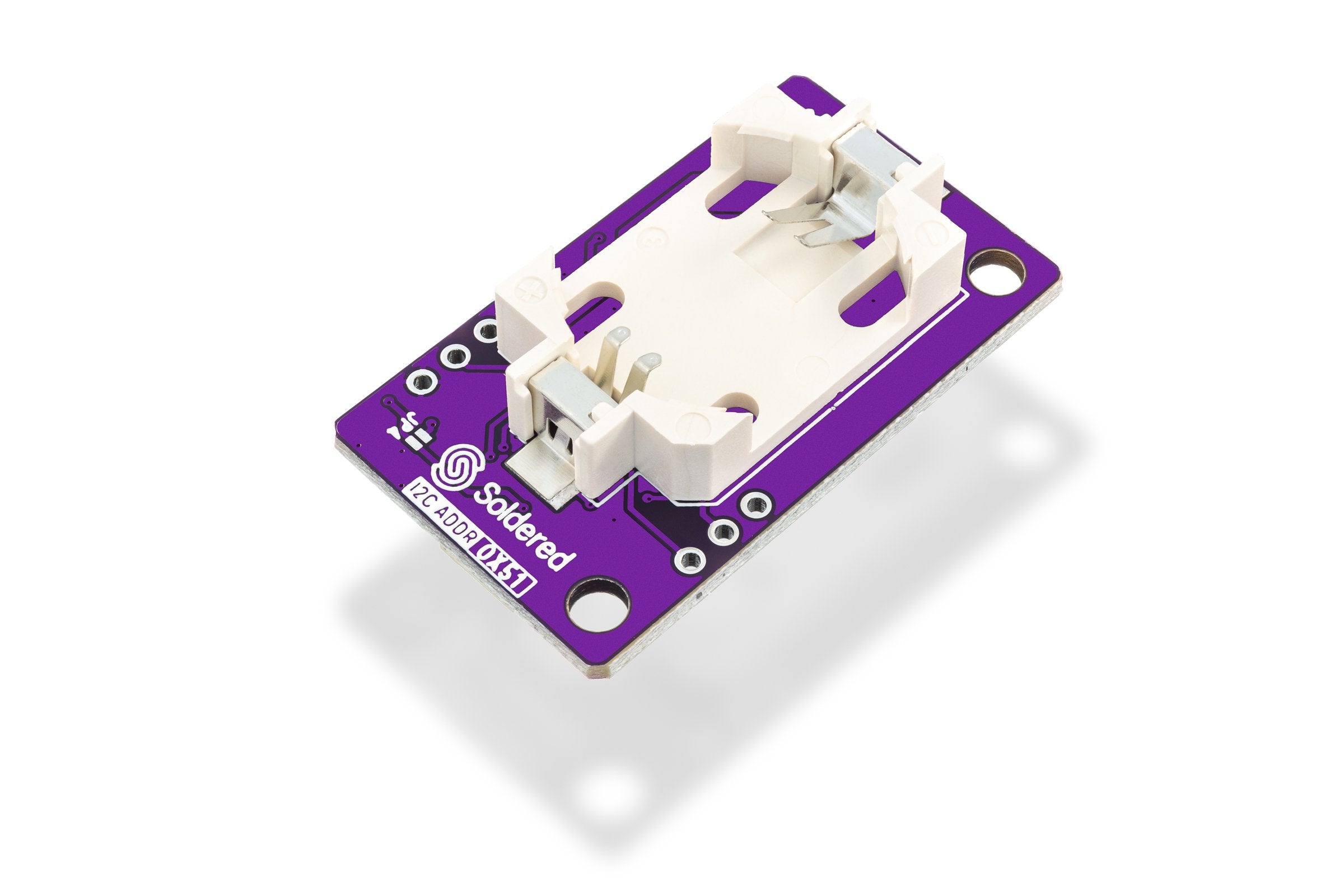

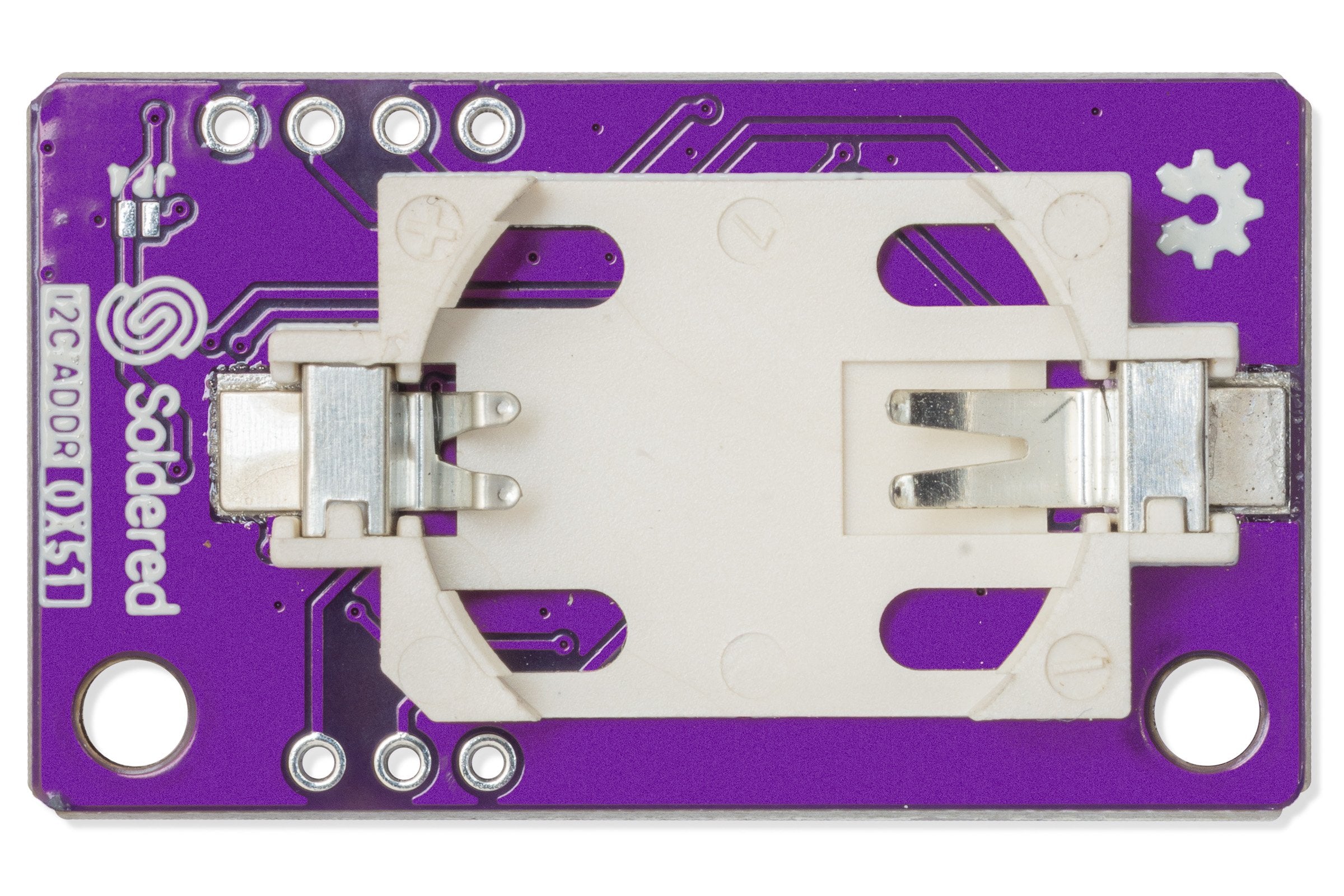

It has a built-in battery holder (battery not included) and even if power is lost, real-time tracking won't be affected.
- Communication: I2C
- RTC IC: PCF85063A
- Voltage: 0.9V - 5.5V
- qwiic connector
- Dimensions: 38 x 22 mm / 1.5 x 0.9 inch
Interface
| Interface | I2C |
|---|---|
| Qwiic Compatible | Yes |
| I2C Address Default | 0x51 |
| I2C Address Changeable | No |
| Breadboard Compatible | Yes |
Power
| Supply Voltage Min V | 3.3 |
|---|---|
| Supply Voltage Max V | 5 |
| Logic Level | 3V3 Or 5V |
Other
| Ic Part Number | PCF85063A |
|---|
Plug into any Soldered Dasduino or microcontroller with an easyC cable — no soldering required.
Add the Soldered library for your language (below).
Open the get-started example and read your first value.
