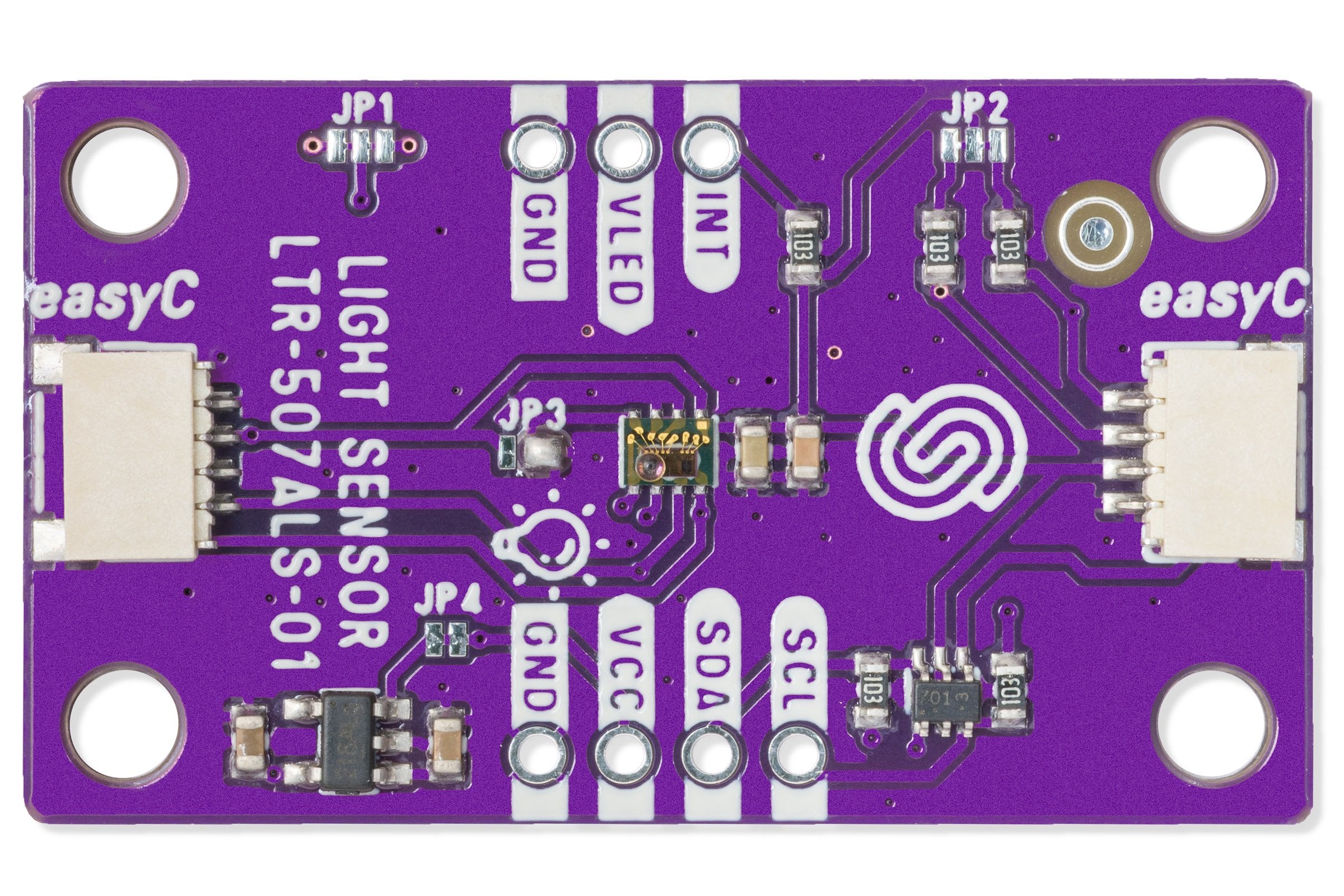

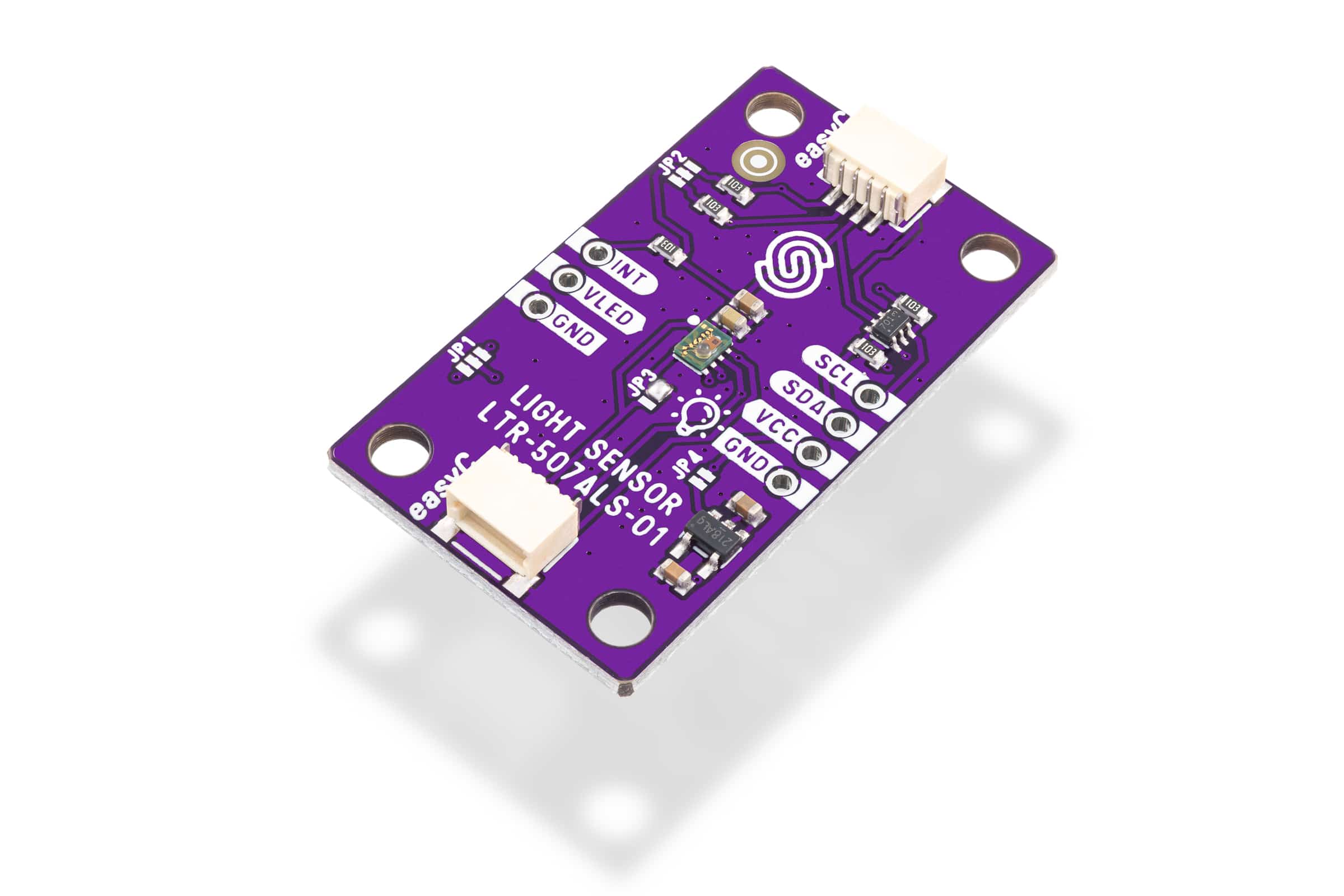

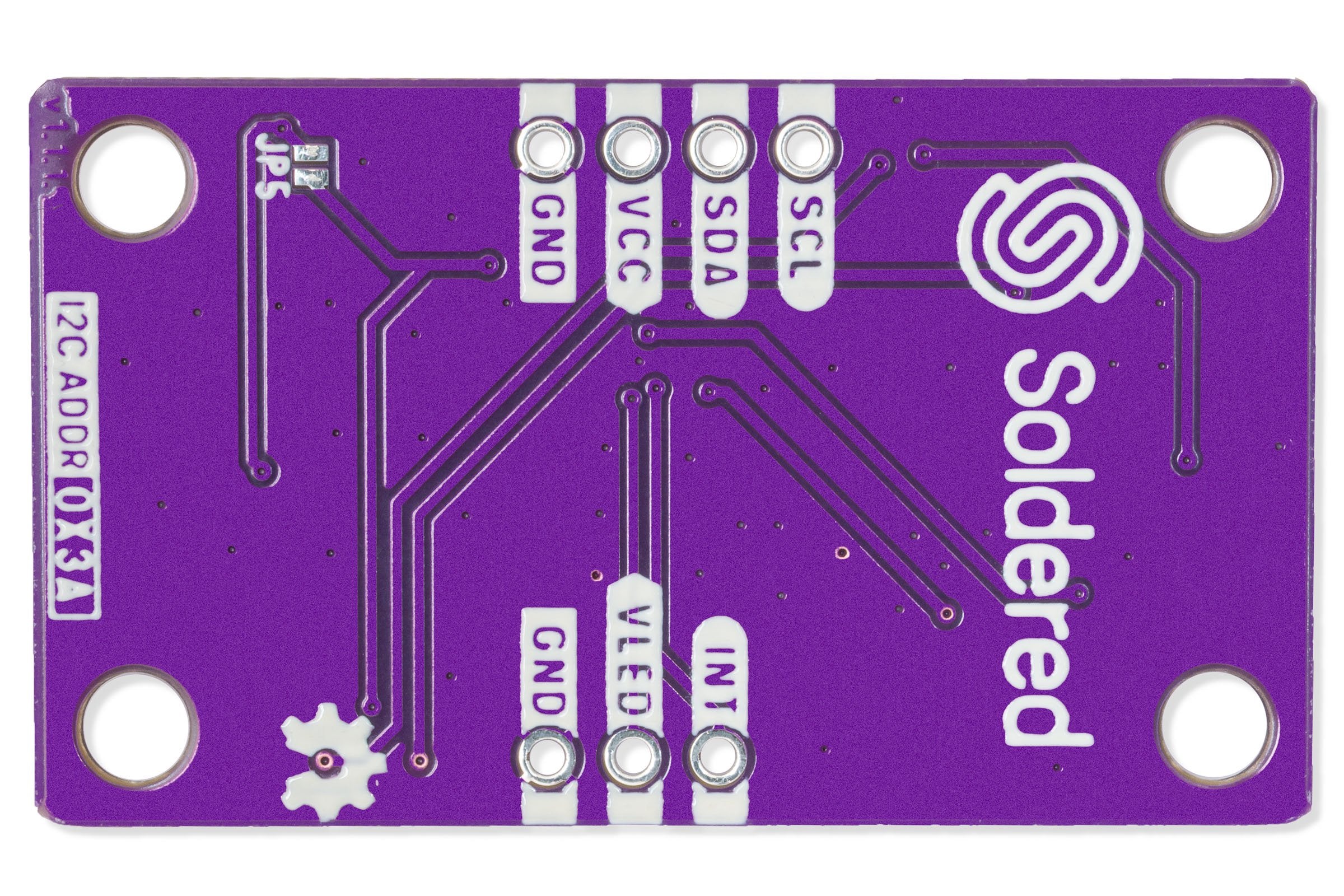

Digital Light & Proximity Sensor LTR-507 Breakout
Qwiic Ecosystem
›
Qwiic Sensors
Sensors & Modules
›
Light, Color & Imaging
Sale
Interface
['i2c']
Qwiic
Yes
The LTR-507 Breakout accurately measures light and proximity, offering easy I2C data communication for seamless integration with Arduino.
For very precise measurements of the amount of light, take this digital light sensor into account (ALS - Ambient Light Sensor). In addition, the LTR-507ALS also measures the proximity (PS - Proximity Sensor) of the object to the sensor. It sends all this data via I2C communication, which is easy to read via our Arduino library.
- IC: LTR-507ALS
- Communication: I2C
- Qwiic connector: 2 pieces
- Dimensions: 38 x 22 mm / 1.5 x 0.9 inch
Interface
| Interface | I2C |
|---|---|
| Qwiic Compatible | Yes |
| I2C Address Default | 0x3A |
| I2C Address Changeable | No |
| Breadboard Compatible | Yes |
Measurement
| Measurement Types | Light, Proximity |
|---|---|
| Measurement Range | Light 0 to 65535 lux; Proximity up to 20 cm |
Power
| Supply Voltage Min V | 3.3 |
|---|---|
| Supply Voltage Max V | 5 |
| Logic Level | 3V3 Or 5V |
Other
| Ic Part Number | LTR-507ALS-01 |
|---|
Start Here
1
Connect
Plug into any Soldered Dasduino or microcontroller with an easyC cable — no soldering required.
2
Install the library
Add the Soldered library for your language (below).
3
Run an example
Open the get-started example and read your first value.
ArduinoC++
MicroPythonPython

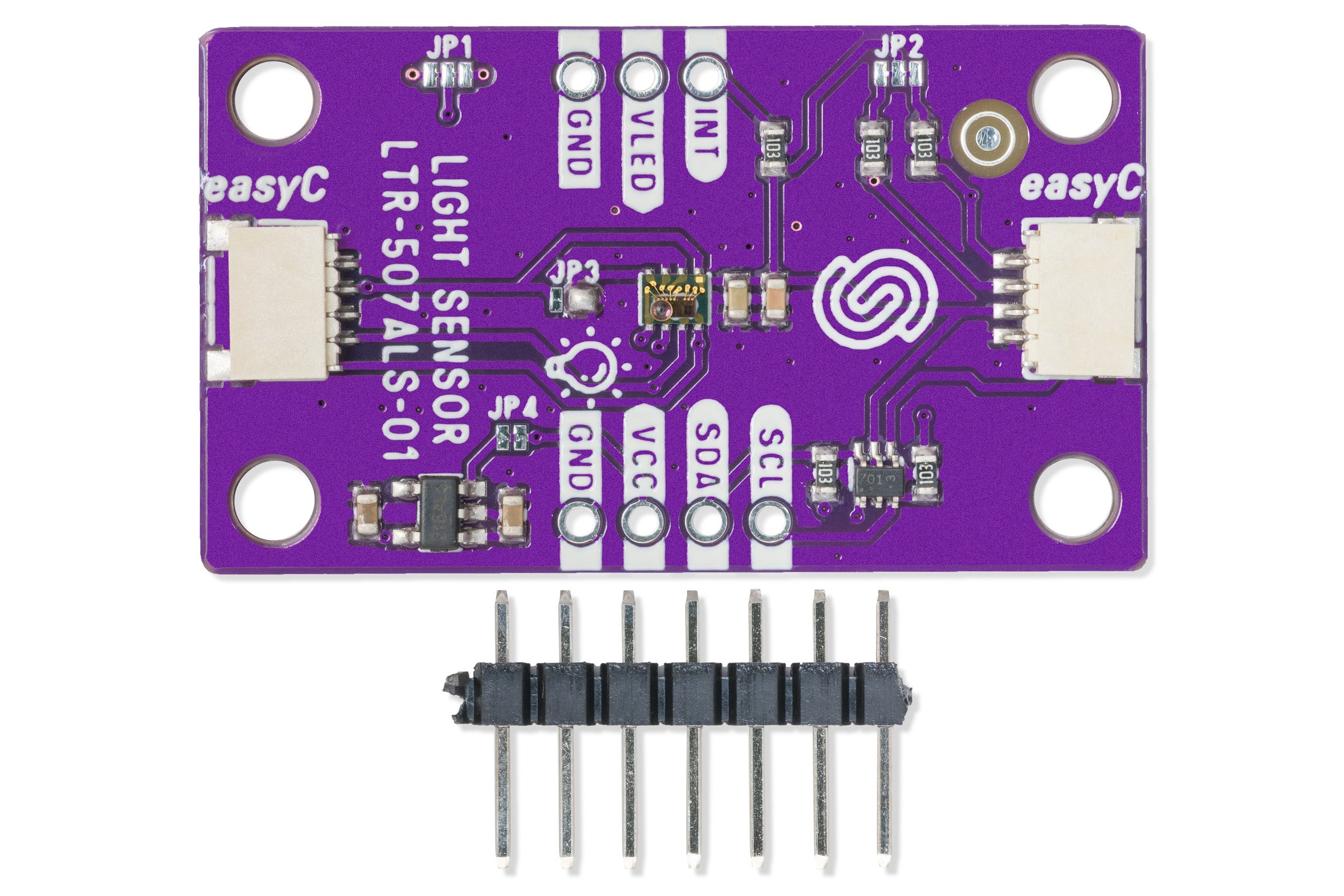

What's in the Box
1×
Digital Light & Proximity Sensor LTR-507 Breakout (main product) 333063
1×
Header pins (unsoldered)
Header pins included for all breadboard-compatible pins

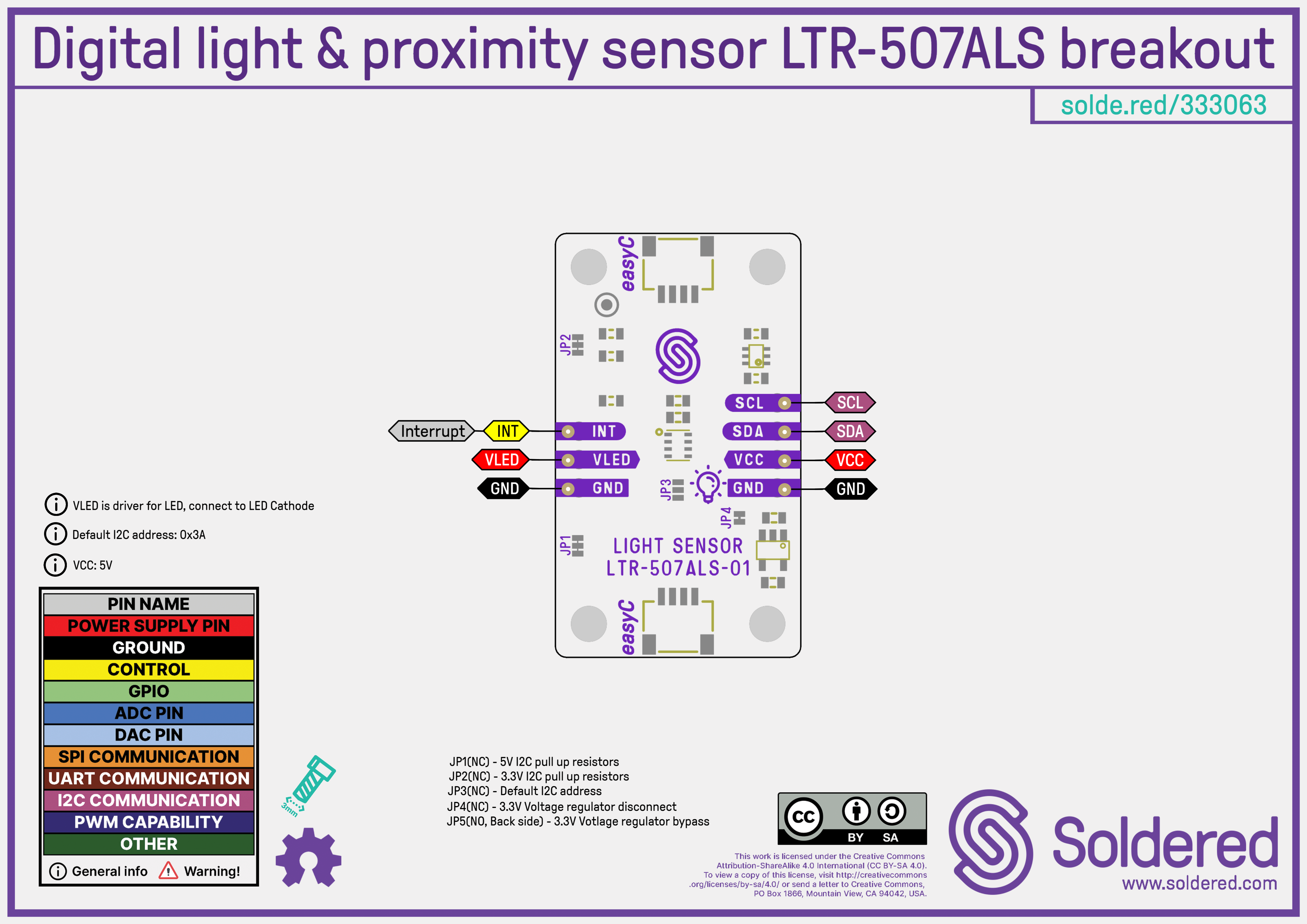

Pinout
