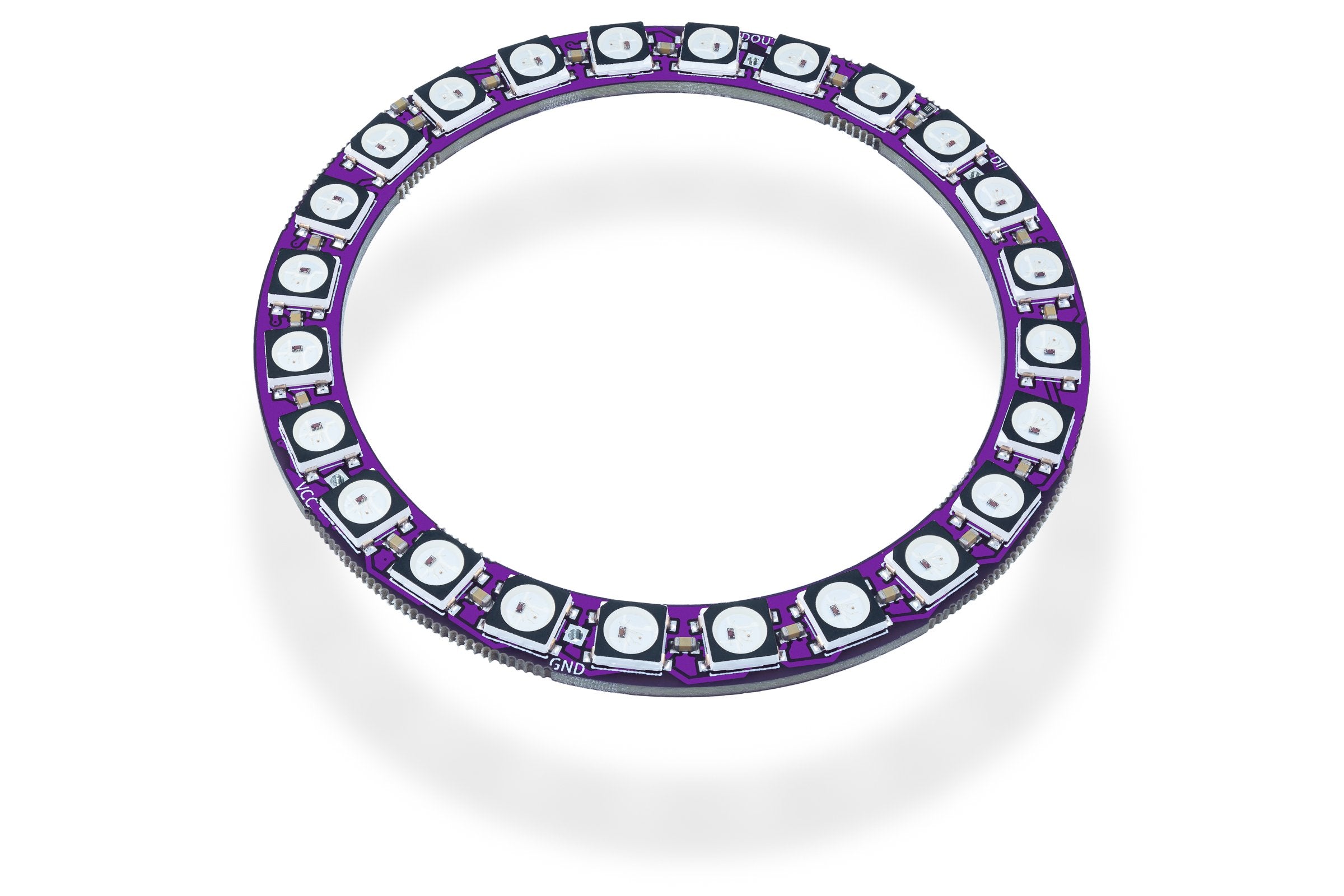

Smart LED WS2812B Ring24

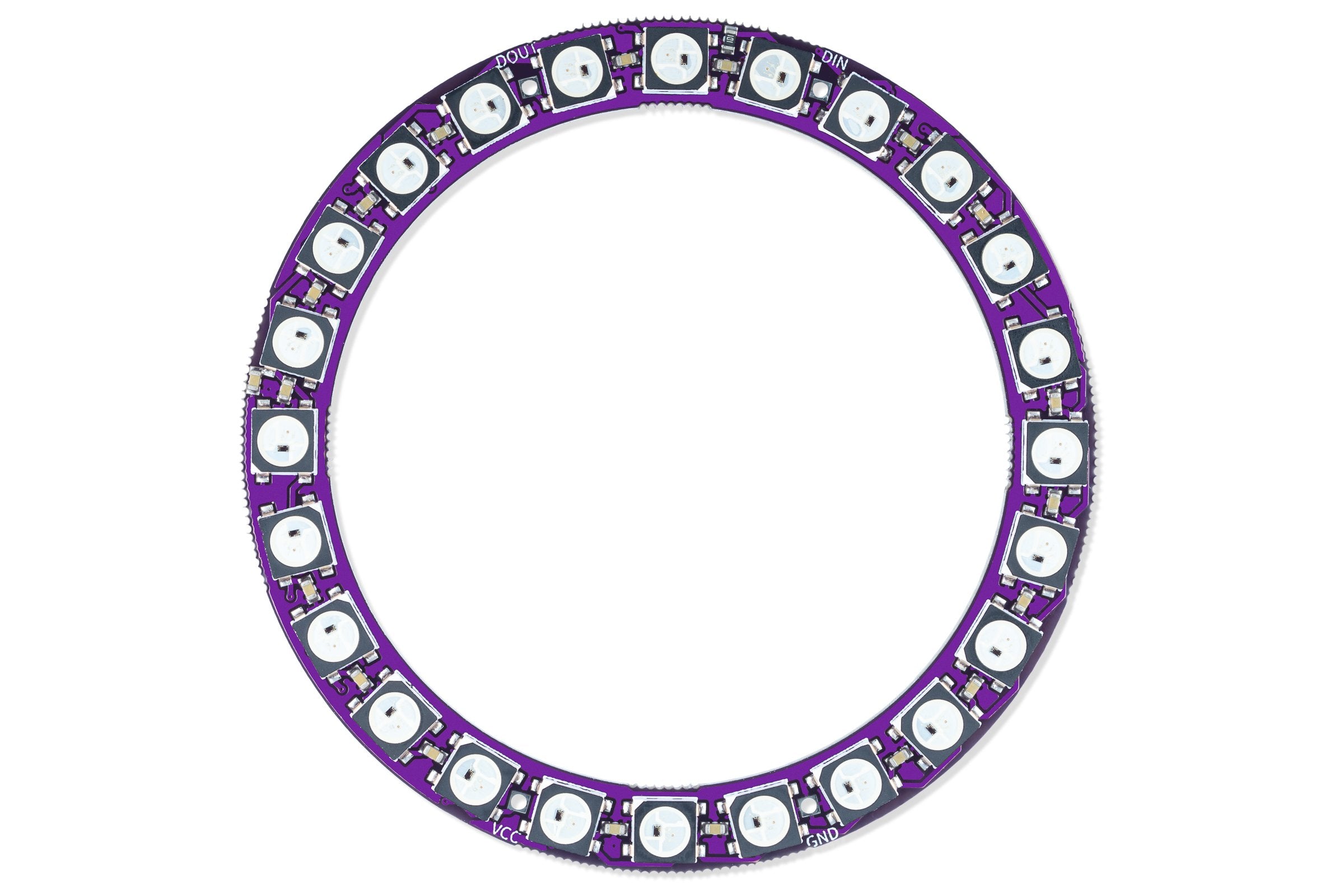

The Smart LED WS2812B Ring24 is a circular array of 24 individually addressable WS2812B RGB LEDs, perfect for vibrant and dynamic lighting. Each LED can be controlled independently via a single data line, enabling complex animations and color patterns with microcontrollers like Arduino or ESP32. Its durable design ensures reliable performance for wearable tech, ambient lighting, or LED Alerts.
Operating at 5V, each LED draws ~18 mA, with a maximum ring current of 432 mA. The 67 mm diameter fits standard enclosures, and the WS2812B protocol allows daisy-chained control from one digital pin. High refresh rates ensure smooth, flicker-free animations with minimal external components.
Ideal for visual feedback in robotics, cosplay, or interactive art, the Ring24 displays complex color gradients or status indicators with ease. Pair it with a Qwiic-compatible microcontroller for simplified integration and start building professional-grade dynamic lighting projects today.
- Number of LEDs: 24
- Voltage: 5V
- LED type: WS2812B
- Current: 18mA per LED
- Circle outer diameter: 67 mm / 2.6 inch
Interface
| Interface | Digital Gpio |
|---|---|
| Qwiic Compatible | No |
| Breadboard Compatible | Yes |
Power
| Supply Voltage Min V | 5 |
|---|---|
| Supply Voltage Max V | 5 |
| Logic Level | 5V Only |
| Operating Current (mA) | 1440 |
Other
| Ic Part Number | WS2812B |
|---|
Wire up to your microcontroller via ['digital_gpio'].
Add the Soldered library for your language (below).
Open the get-started example and read your first value.
