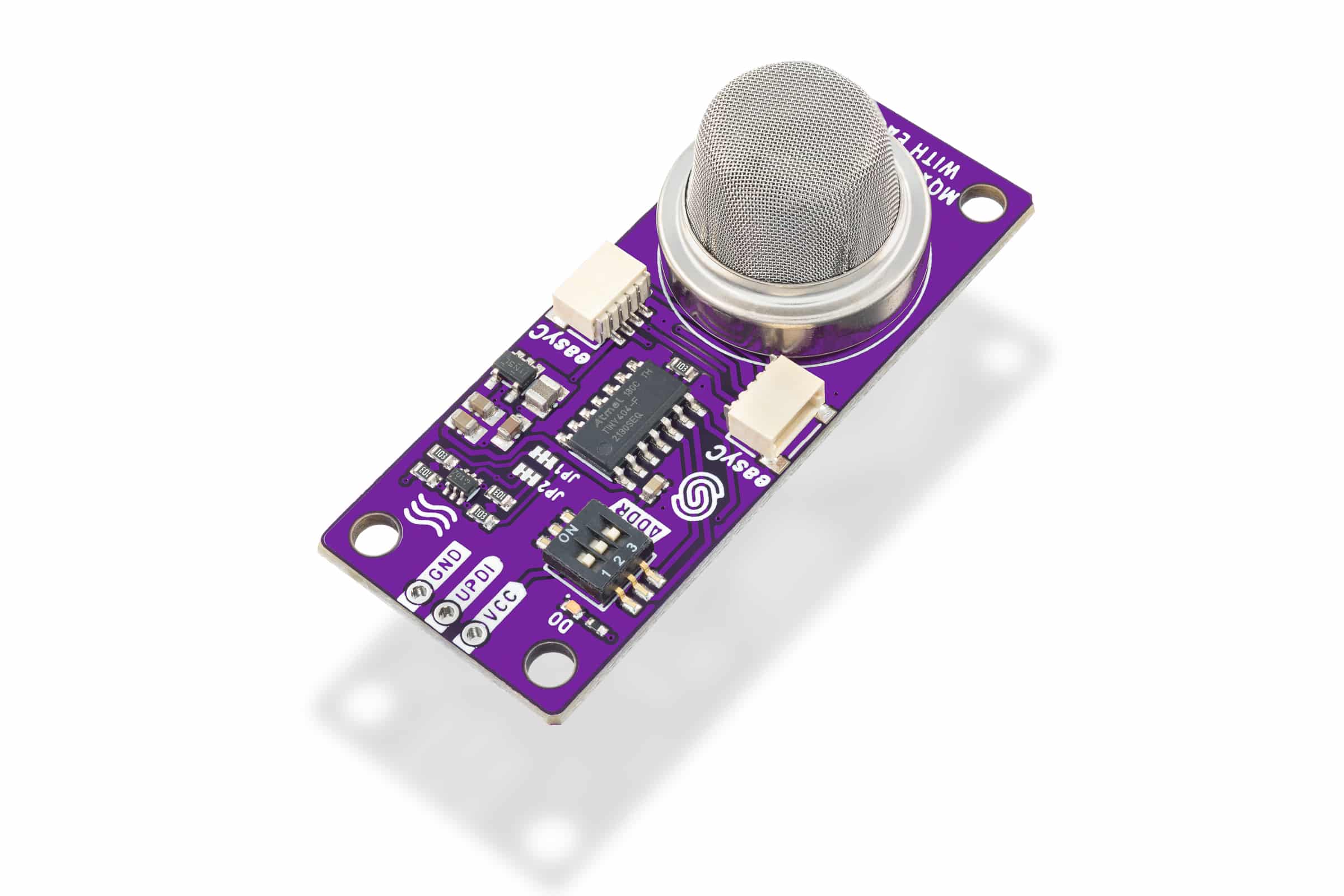

Ammonia Sensor MQ137 Breakout with Qwiic
The sensitivity and selectivity of the MQ137 sensor allow it to effectively detect and measure levels of ammonia, making it a valuable tool for applications such as gas leakage detection, agricultural monitoring, and environmental sensing. By integrating the MQ137 sensor with appropriate electronic circuits and microcontrollers like Dasduino, you can create systems that provide real-time monitoring and prompt alerts in the presence of hazardous ammonia concentrations. It requires a short time to heat up in order to work correctly.
The breakout board provides digital and analog information through the Qwiic system. Sensor readings are obtained through Qwiic.
Product usage tips:

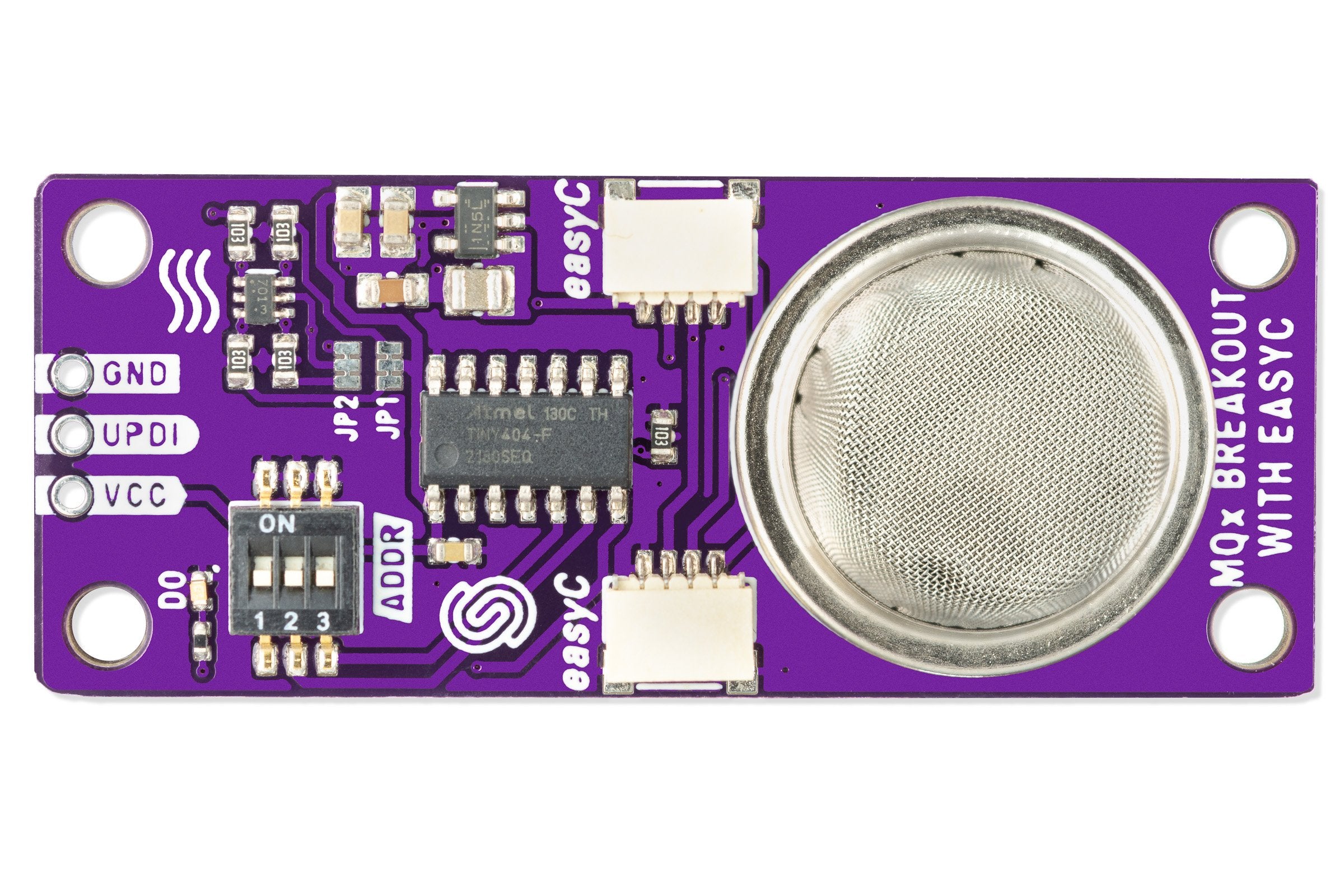

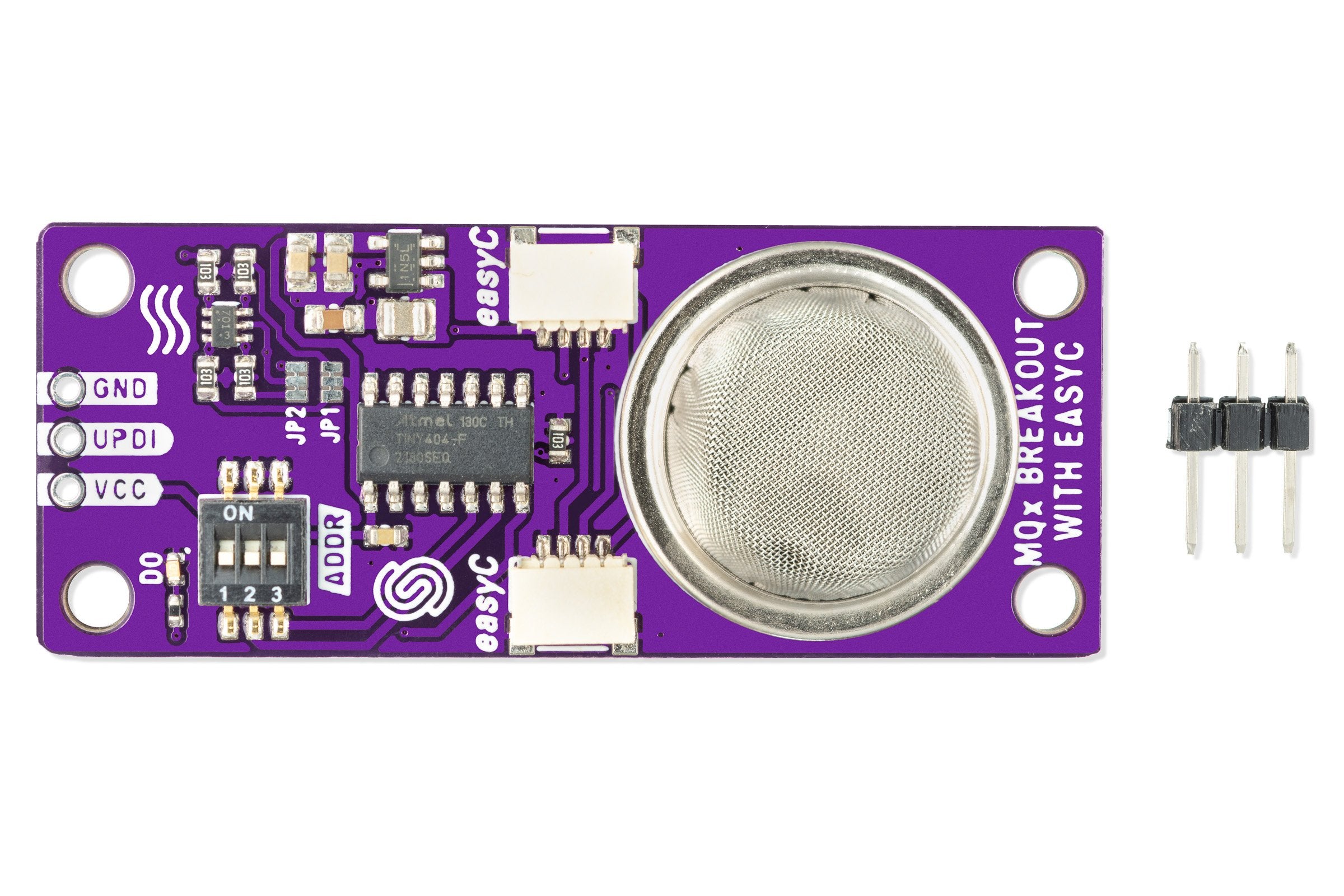

When gas is detected, the LED will start glowing. It will remain off if it doesn't detect anything. Four mounting holes enable easy mounting to surfaces. The board comes with three male headers.
- Detects: ammonia
- Voltage: 3V3
- Output: digital
- ATTiny404 microcontroller onboard
- qwiic connectors
- Dimensions: 54 x 22 mm / 2.1 x 0.9 inch
Interface
| Interface | I2C |
|---|---|
| Qwiic Compatible | yes |
| I2C Address Default | 0x30 |
| I2C Address Changeable | yes |
| Breadboard Compatible | yes |
Measurement
| Measurement Types | Gas |
|---|
Power
| Supply Voltage Min V | 3.3 |
|---|---|
| Supply Voltage Max V | 3.3 |
| Logic Level | 3v3_only |
Other
| Ic Part Number | MQ137 |
|---|---|
| Mcu Part Number | ATTINY404 |
Plug into any Soldered Dasduino or microcontroller with an easyC cable — no soldering required.
Add the Soldered library for your language (below).
Open the get-started example and read your first value.
