Soldered ADS-B 1090MHz Receiver ESP32-S3

Qwiic Ecosystem › Qwiic Development boards
Communication & Wireless › WiFi & Bluetooth, GPS & Location
MCU ESP32-S3 WiFi wifi4
Track aircraft around you with this ESP32-S3 development board and its onboard 1090 MHz ADS-B receiver, sharing the data over Wi-Fi.

Pick up ADS-B broadcasts from the aircraft near you and put them to work: plot them on a map, keep a log, or forward them to a flight-tracking service. The board pairs an Aerobits TT-SC1 1090 MHz ADS-B receiver with an ESP32-S3-WROOM-1-N8R8 module, so both decoding and networking run on a single board.

The TT-SC1 monitors 1090 MHz, decoding position, altitude and identification messages from as many as 100 aircraft at once and passing the results to the ESP32-S3 over UART. With 8 MB of flash, 8 MB of PSRAM, Wi-Fi and Bluetooth LE, the ESP32-S3 can serve a live map straight from the board or push the data onto your network.

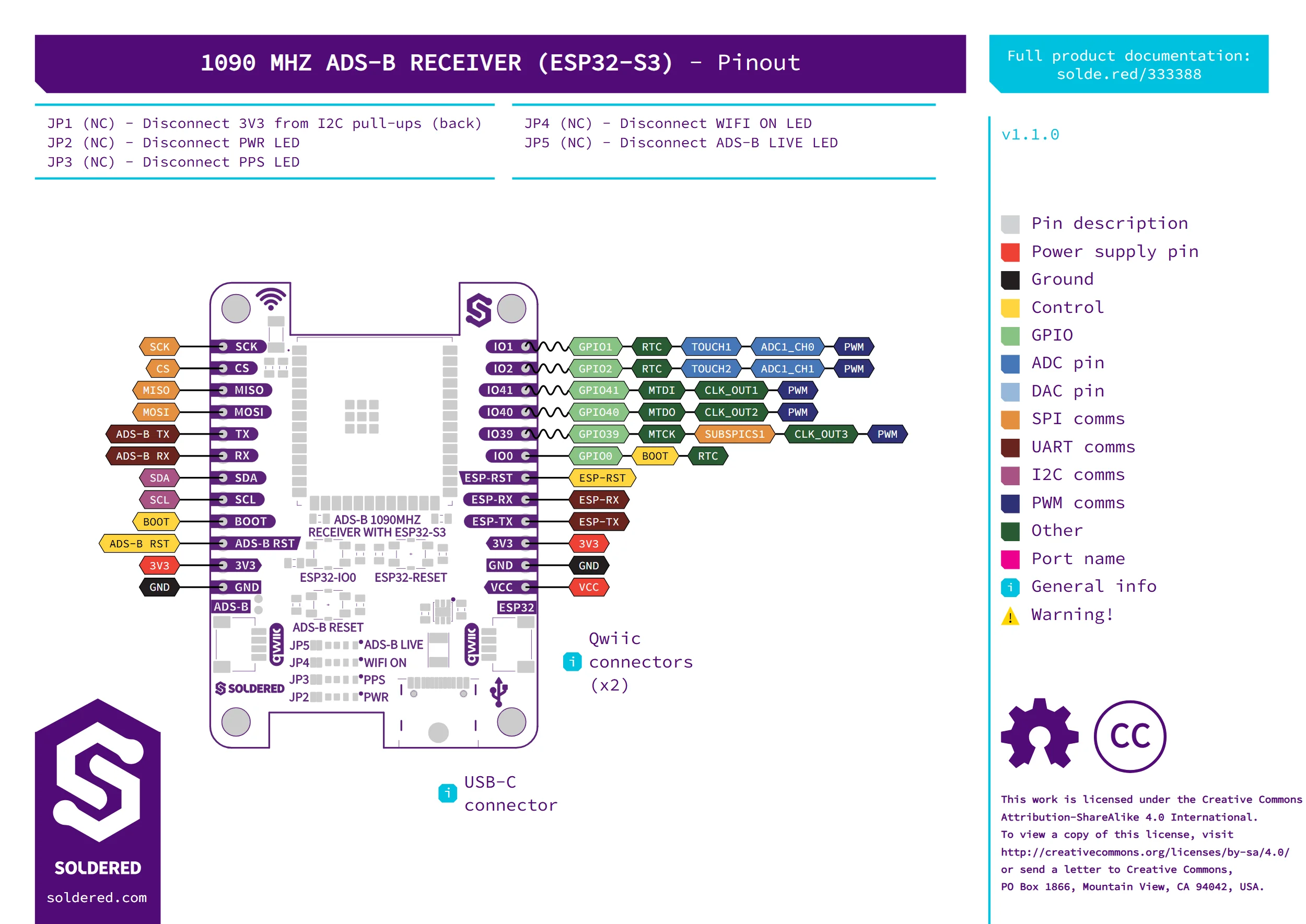

Power and programming both come through the USB-C port. An onboard CH340K converter with an automatic reset circuit means firmware uploads need no button presses. The receiver's antenna plugs into the module's IPEX connector. Two Qwiic connectors bring the ESP32-S3's I2C bus out to a cable, so a display or sensors can be added without soldering. The two 12-pin headers break out the receiver's UART, SPI, reset and boot lines next to the free ESP32-S3 pins, and separate reset buttons for the ESP32-S3 and the receiver simplify testing.

Four status LEDs report power, the receiver's PPS signal, Wi-Fi state and incoming ADS-B traffic. Each has a jumper that can be cut if you need to save power.

Receiver

  • Module: Aerobits TT-SC1 (version b) with IPEX antenna connector
  • Operating frequency: 1090 MHz
  • Receiver sensitivity: −85 dBm
  • Aircraft tracked at once: up to 100
  • Range: more than 150 km (manufacturer figure; open space with a 1 dBi antenna)
  • Current draw: 70 mA typical at 3.3 V

Microcontroller

  • Module: ESP32-S3-WROOM-1-N8R8
  • CPU: dual-core Xtensa LX7 running at up to 240 MHz
  • Memory: 512 KB SRAM, 8 MB flash and 8 MB PSRAM
  • Wireless: Wi-Fi 802.11 b/g/n at 2.4 GHz and Bluetooth LE 5
  • USB-to-UART bridge: CH340K with automatic reset and boot

Power

  • Input: 5 V from USB-C or the VCC header pin
  • Regulator: TPS7A2633 (3.3 V, 500 mA)
  • I/O logic level: 3.3 V

Mechanical

  • Board dimensions: 38 x 54 mm
  • Mounting: four 3.2 mm holes

MCU

Mcu Part Number ESP32-S3
Mcu Clock (MHz) 240
Sram (KB) 512
Flash (MB) 8

Connectivity

Wifi Wifi4
Bluetooth Ble 5
Wireless Module ESP32-S3-WROOM-1-N8R8

Interface

Gpio Count 5
Qwiic Compatible Yes
Breadboard Compatible No

Power

Battery Connector None
Onboard Battery Charger No
Supply Voltage 3V3 5V
Logic Level 3V3
Sleep Current Ua 80000

Other

Dev Environments Arduino IDE, MicroPython, ESP-IDF
Flash & Go
1
Power & connect

Connect over USB-C (optional Li-Po battery for portable use).

2
Set up your toolchain

Install the board definition and library for your language (below).

3
Run an example

Upload the first sketch or script and see it work.

ArduinoC++
MicroPythonPython
What's in the Box
1×
Soldered ADS-B 1090MHz Receiver ESP32-S3 (main product) 333388
1×
Header pins (unsoldered)
Header pins included for all breadboard-compatible pins
1×
USB-C cable
1×
FXUB1900 ADS-B Antenna
