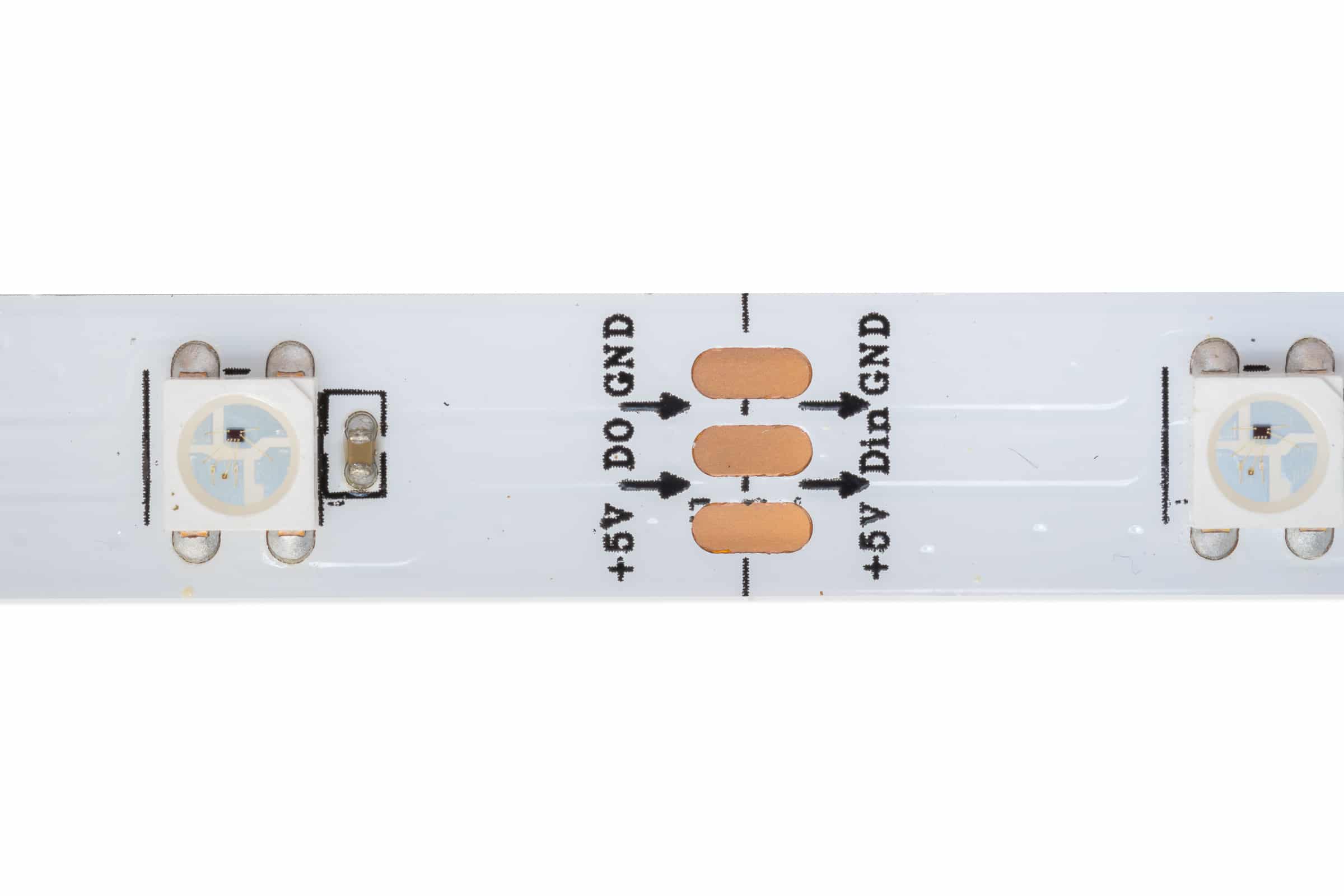

WS2812B Addressable RGB LED Strip 5V
Actuators & Outputs
›
LEDs & Lighting
Individually addressable RGB LED strip with 16.7 million colors, compatible with microcontrollers for creative lighting solutions.

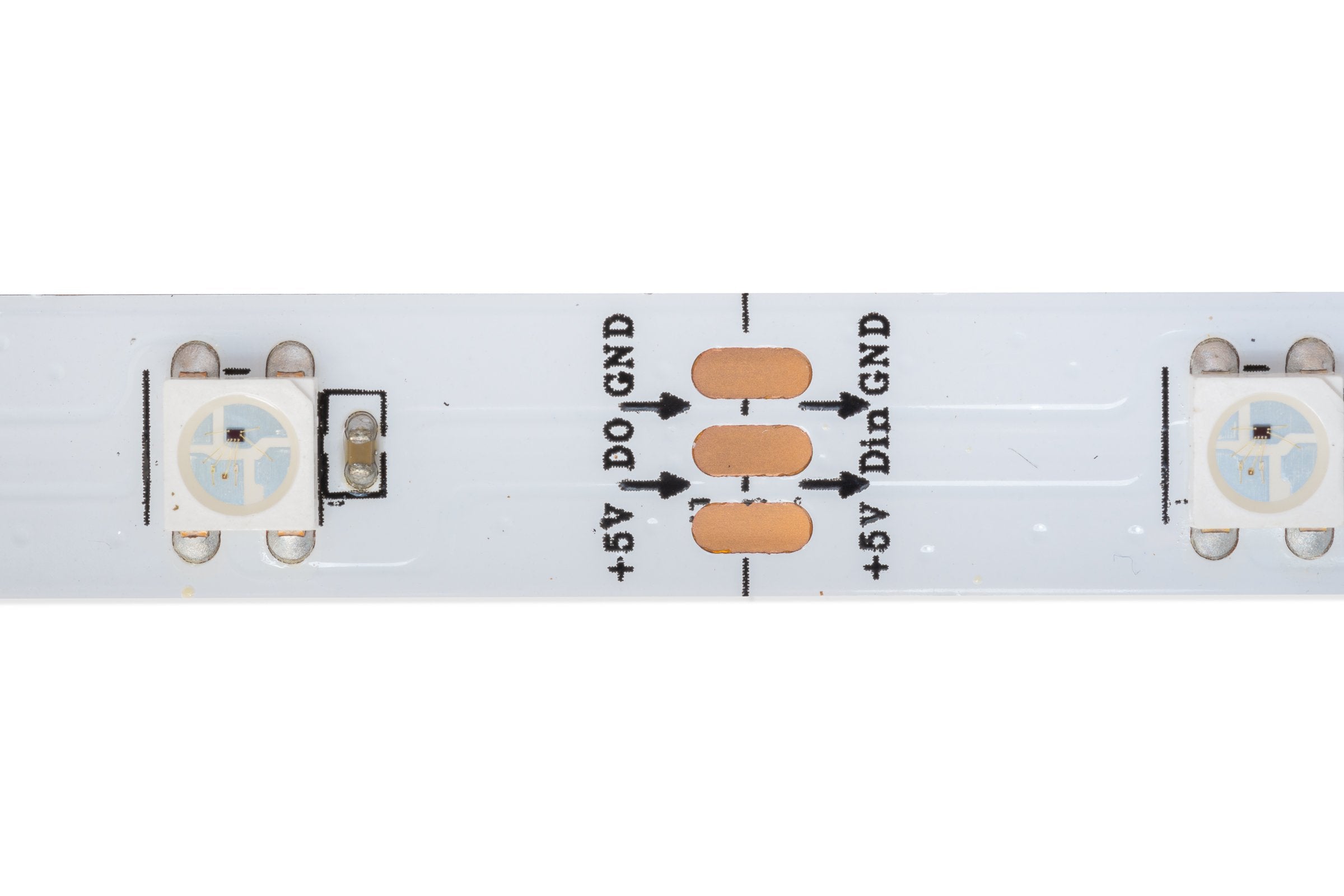

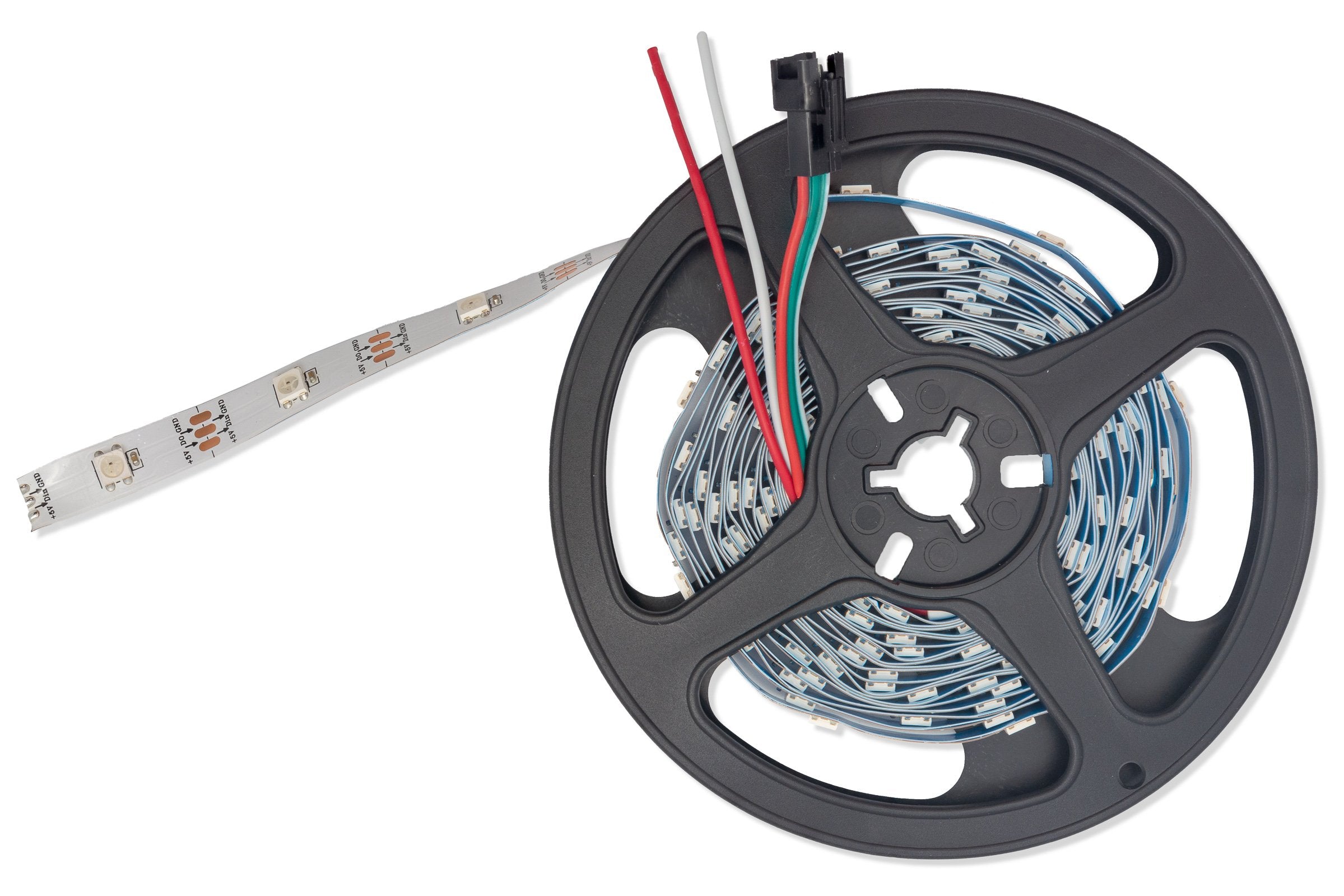

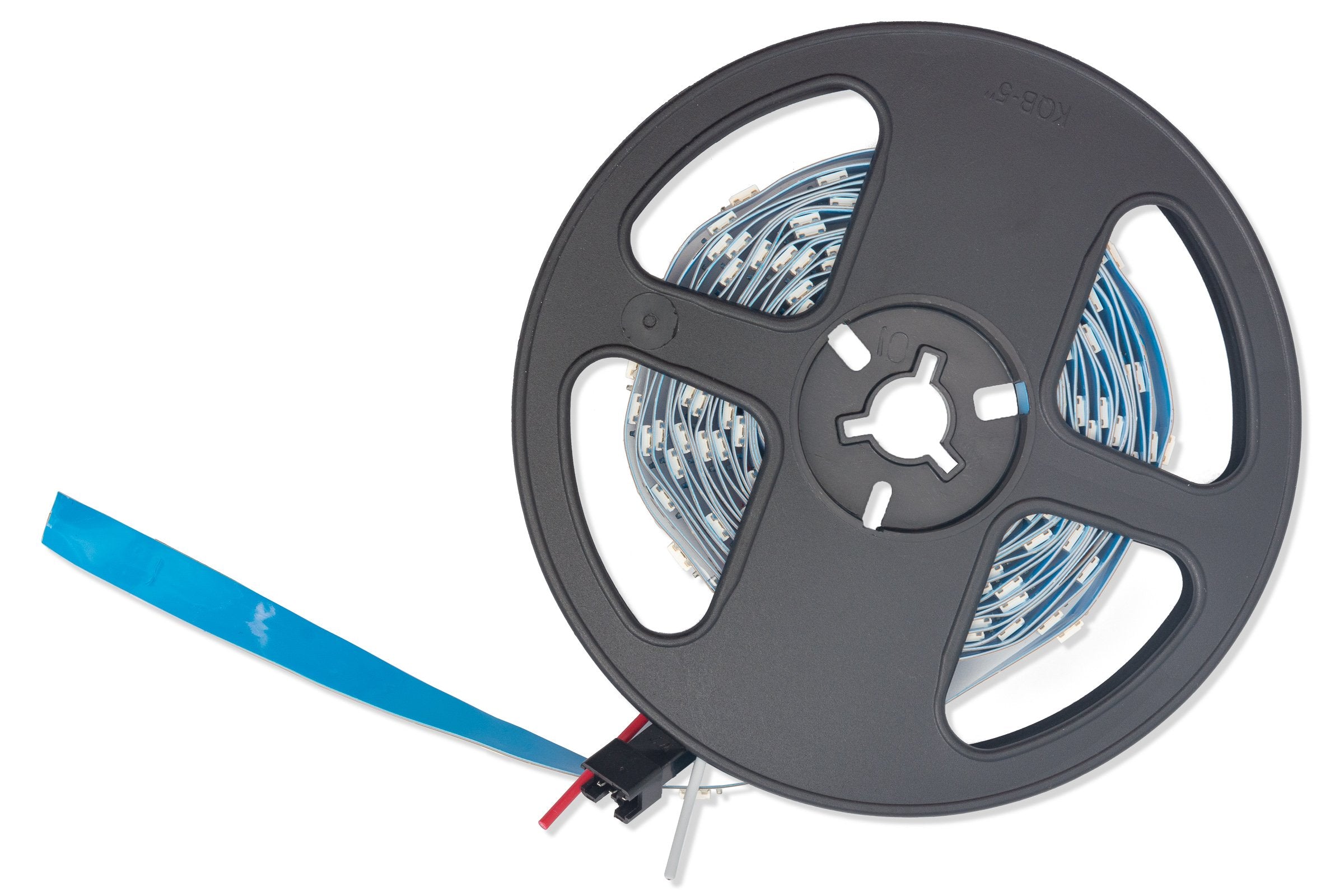

Individually addressable RGB LED strip where every LED has a built-in WS2812 IC giving you independent control of each diode across 16,777,216 colors over a single data wire. Available in 30 LED/m and 60 LED/m density.
Runs on 5V, making it compatible with NULA, Arduino, Raspberry Pi, and any microcontroller with a digital output. IP20 rated for indoor use. Chainable for larger installations.
- Color: RGB (red/green/blue)
- Voltage: 5V
- Power: 8W/m
- Current: 1.6A/m
- Number of diodes: 30 diodes per meter | 60 diodes per meter
- Diode type: WS2812 SMD LED (5050 LED diodes with built-in IC)
- Protection: IP20

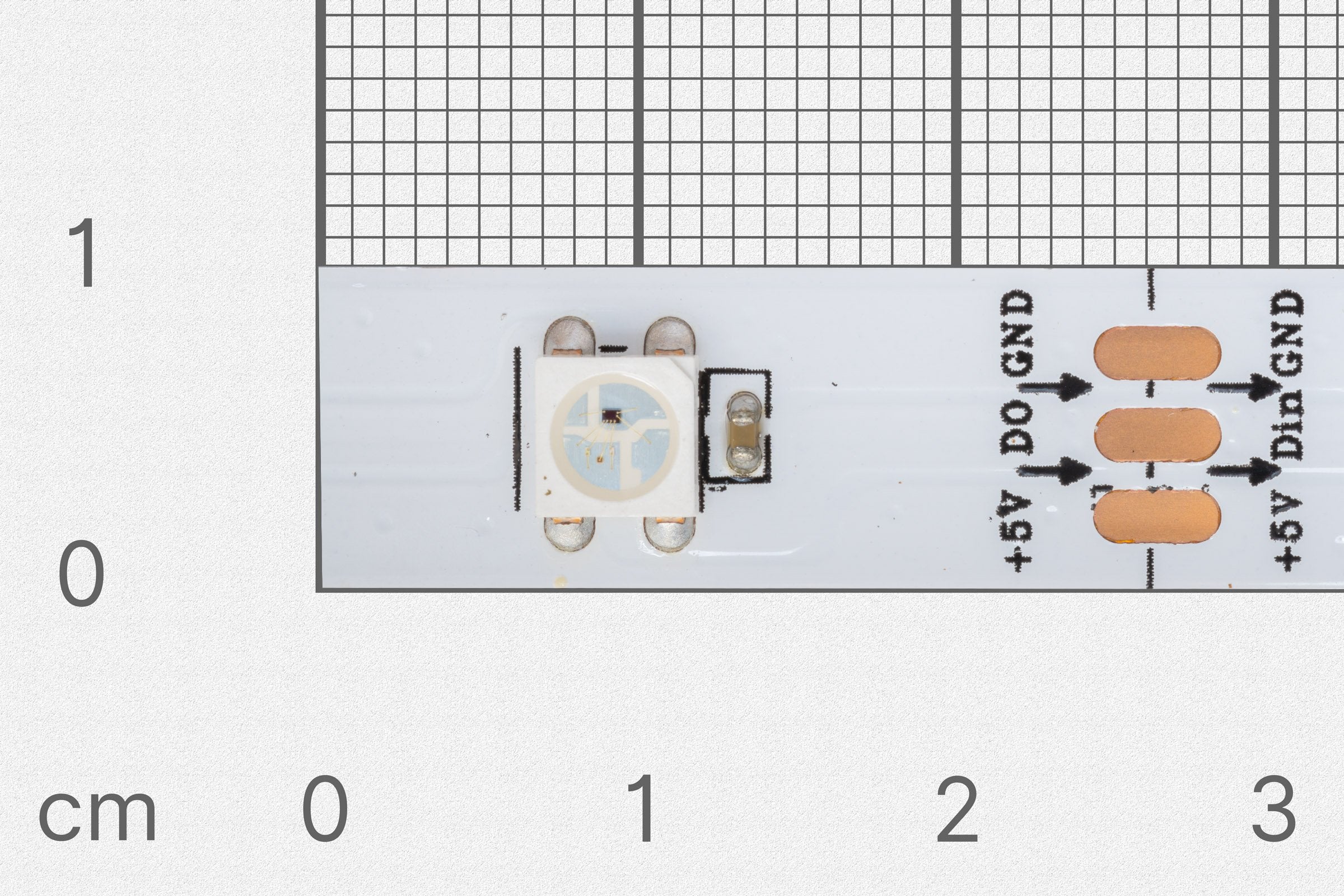

- Dimensions: 10 mm / 0.4" wide; 2 mm / 0.1" thick
- Quantity 1 indicates 1 meter of strip
Variants
What's in the Box
1×
WS2812B Addressable RGB LED Strip 5V 100340
